System 4000

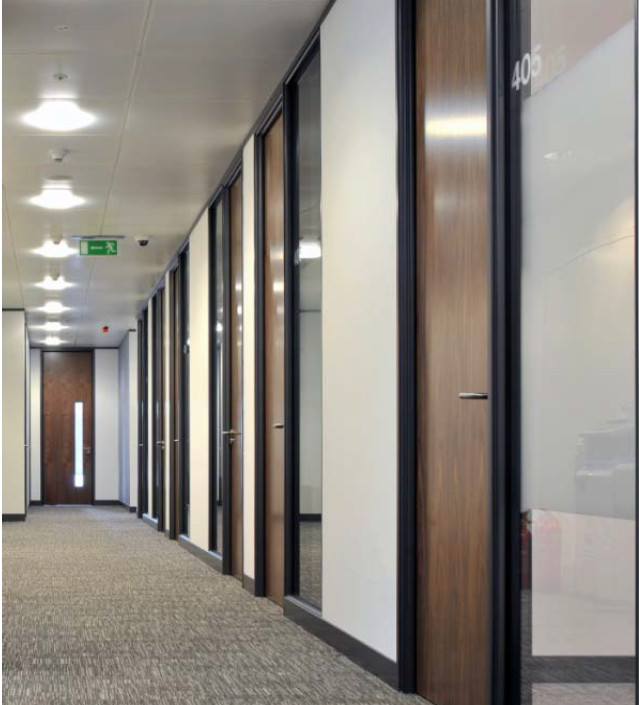

SAS System 4000 is a nominal 100mm (4”) relocatable office partitioning system that provides both fire and acoustic performance. It is available in any combination of solid, fully glazed or part glazed elevations with a square, radiused or wrap around profile.

Comprising a galvanised steel stud framework with aluminium profiles and cover trims, it can be installed as single centre, single offset or double glazed or faced with either single or double layers of 12.5mm thick gypsum plasterboard.

Door frames are supplied as manufactured kits for rapid on site fitting with a range of integrating doors available.

The overall thickness of the system is 119mm, with all extruded aluminium profiles available as polyester powder coated to a range of colours.

Benefits
Simple, attractive design
Acoustic & fire performance options
Single or double glazed available
Flexible & easy to install
Rapid fit door frame kits
Choice of joints and detailing
Integral blinds & manifestation options

Products available from stock:

A full range of System 4000 components are available from depots as standard in RAL9010 and RAL9006

Typical vertical sections

Typical vertical sections

Square profile

Square profile

Radiused profile

Radiused profile

Wrap around profile

Wrap around profile

Acoustic and Fire Performance Summary

Acoustic Performance Fire Performance
Solid Up to 48dB Up to 30/0
Single Centre Glazed Up to 34dB Up to 30/0
Single Offset Glazed Up to 34dB Up to 30/0
Double Glazed Up to 40dB Up to 30/0

Please contact us to talk about your partitioning needs.
