System 6000

Banner System 6000

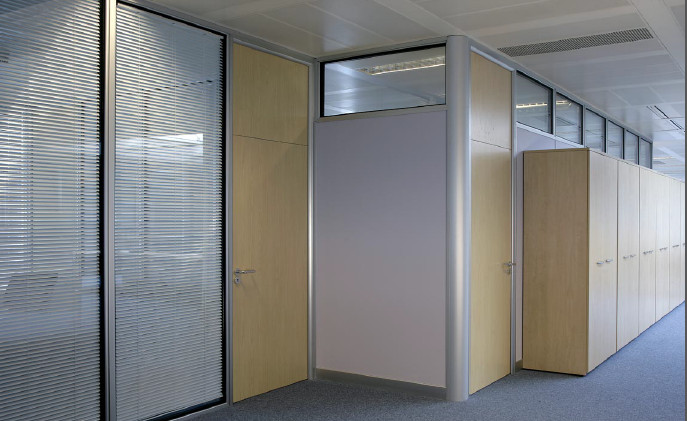

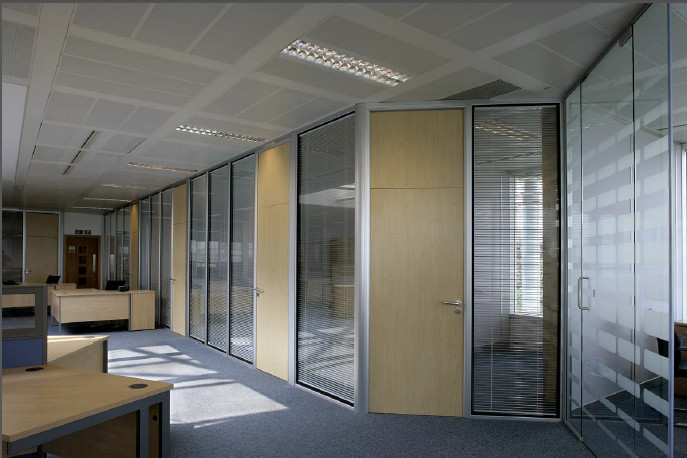

SAS System 6000 is a nominal 75mm (3”) relocatable partitioning system that provides acoustic performance. It is available in any combination of solid, fully glazed or part glazed elevations with a square or radiused profile.
Comprising a galvanised steel stud framework with aluminium profiles and cover trims, it can be installed as single offset or double glazed or faced with either single or double layers of 12.5mm thick gypsum plasterboard.
Door frames are supplied as manufactured kits for rapid on site fitting with a range of integrating doors available.
The overall thickness of the system is 95mm, with all extruded aluminium profiles available as polyester powder coated to a range of colours.

Benefits

  • Acoustic performance options
  • Single offset or double glazed available
  • Flexible & easy to install
  • Choice of joints and detailing
  • Integral blinds & manifestation options
Typical vertical sections

Typical vertical sections

Square profile

Square profile

Radiused profile

Radiused profile

Acoustic Performance Summary

Acoustic Performance
Solid Up to 48dB
Single Offset Glazed Up to 32dB
Double Glazed Up to 42dB

Please contact us to talk about your partitioning needs.
