System 7000
SAS System 7000 is a nominal 100mm (4”) steel relocatable partitioning system that provides up to 30 minutes fire performance and acoustic performance to 51dB. It is available in any combination of solid, fully glazed or part glazed elevations.
Comprising a galvanised steel stud framework with aluminium profiles and cover trims, it can be installed as single offset or double glazed or faced with either a single layer of 12.5mm thick gypsum plasterboard.

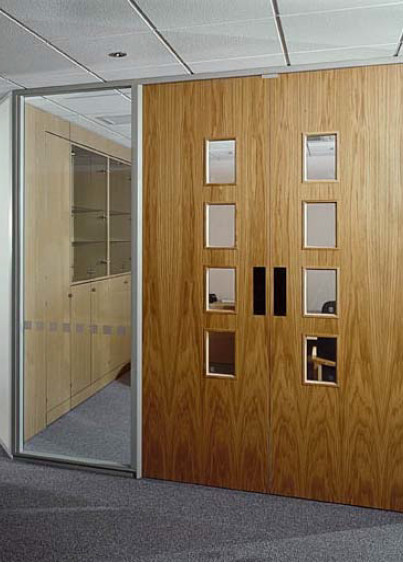

Door frames are supplied as manufactured kits for rapid on site fitting with a range of integrating doors available.
The overall thickness of the system is 80mm, with all extruded aluminium and steel profiles available as polyester powder coated to a range of colours.
Benefits
- Acoustic performance options upto 51dB
- Fire performance options upto FD30
- Single offset or double glazed available
- Flexible & easy to install
- Integral blinds & manifestation options
Typical vertical sections
Acoustic and Fire Performance Summary
| Acoustic Performance | Fire Performance | |
|---|---|---|
| Solid | Up to 51dB | Up to FD30 |
| Single Offset Glazed | Up to 34dB | Up to FD30 |
| Double Glazed | Up to 45dB | Up to FD30 |
Please contact us to talk about your partitioning needs.
